VM Monitor and Operations

RESVRL provides VM monitoring and operations on the VM detail page to help you manage dashboards and maintenance tasks.

VM Monitor and Operations

RESVRL provides VM monitoring and operations on the VM detail page to help you manage dashboards and maintenance tasks.

From where to enter

  1. From the VM list, click a VM name to open its detail page.
  2. The detail page centers on the operation console and includes the following tabs (System Info is the default):
    • System Info
    • Interface
    • Snapshot
    • Terminal
    • Settings

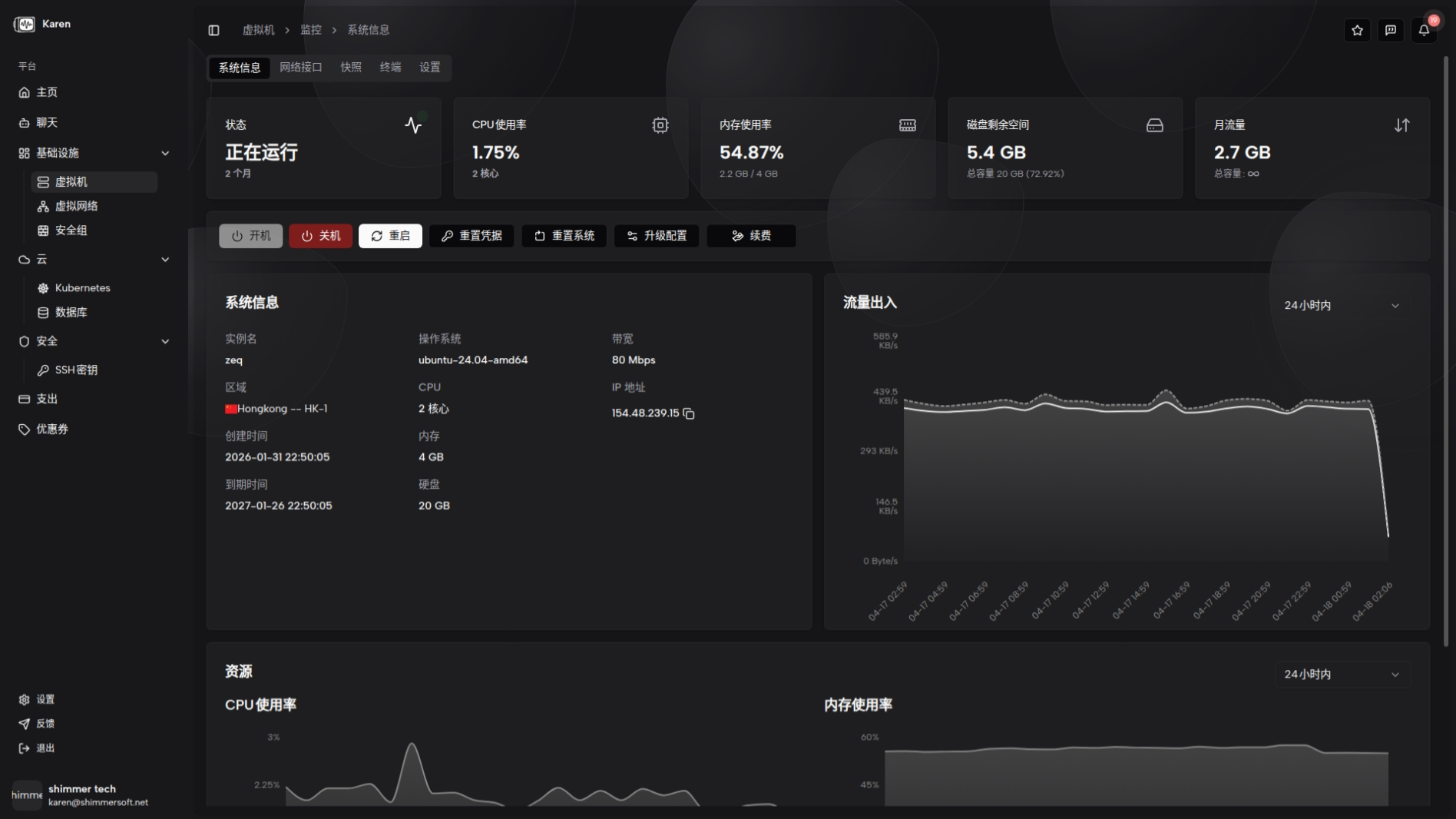

VM detail page

System Information

In the system information area you can review key attributes and the VM state:

  • Instance name and current running state
  • Public IP and region
  • Operating system image
  • CPU cores, memory, storage, and bandwidth details
  • Creation time and expiry/renewal information
  • Summary of NICs and related network configuration

System information also feeds the real-time and historical metrics panels for quick assessment.

Metrics and Charts

  • Real-time indicators show current state, CPU usage, memory usage, and disk capacity utilization.
  • Historical charts display CPU, memory, disk usage over time, and inbound/outbound network traffic
  • Charts support time ranges of 24 hours, 3 days, and 15 days to help distinguish bursts from long-term trends.

Actions available from this page

Power actions

Power actions include Start, Stop, and Reboot. Reboot supports an optional force mode. Force reboot immediately terminates running processes and may cause data loss β€” use with caution.

Power operation dialog

Reset credentials

Reset credentials lets you modify the VM login credentials, including username, SSH public keys, and password. A reboot may be required for changes to take effect.

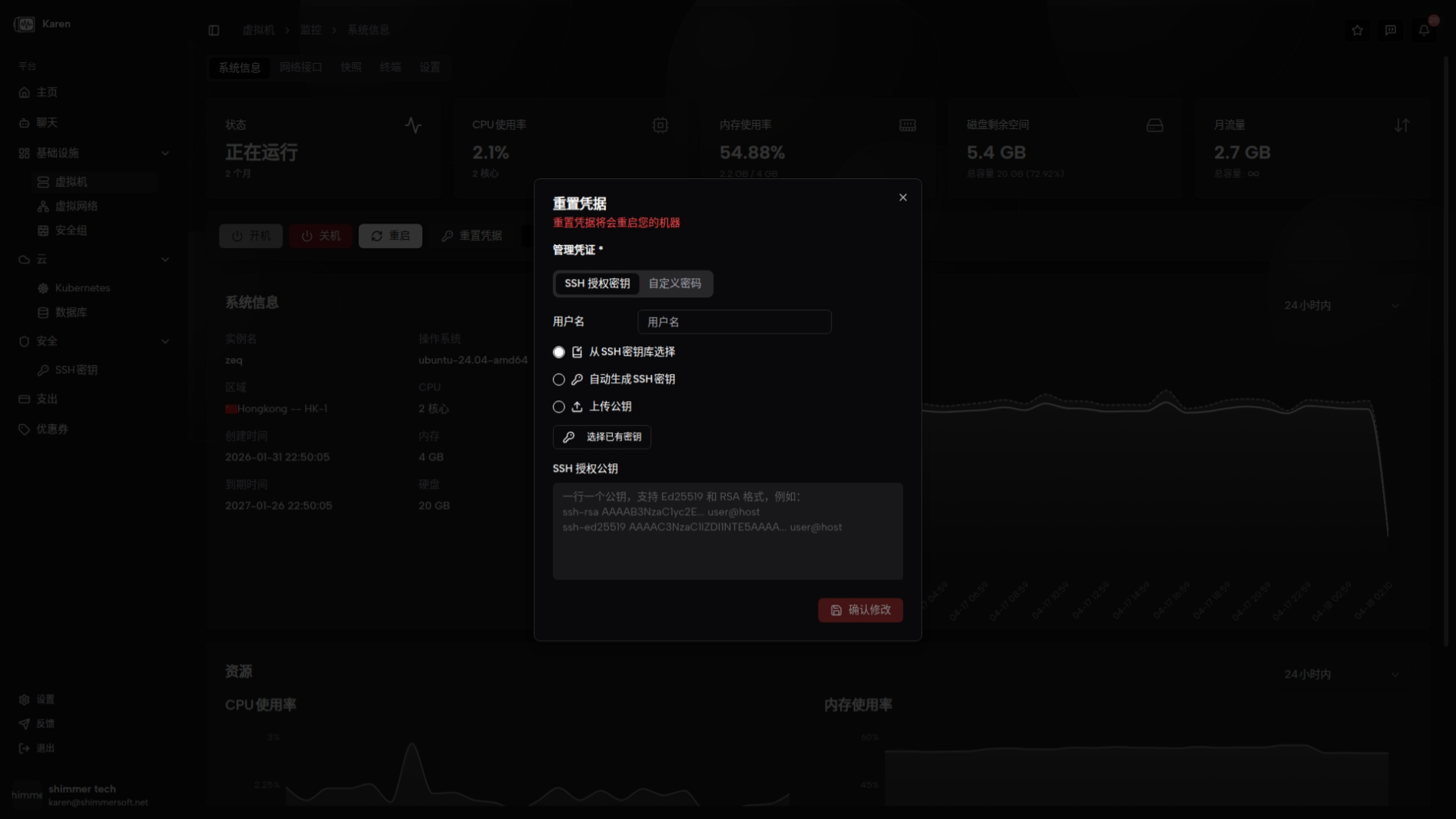

Credentials reset dialog

Reinstall OS

From the OS reinstall section, choose a new image to reinstall the operating system. This is a destructive operation that wipes the system disk β€” back up important data first. Available images depend on the host machine.

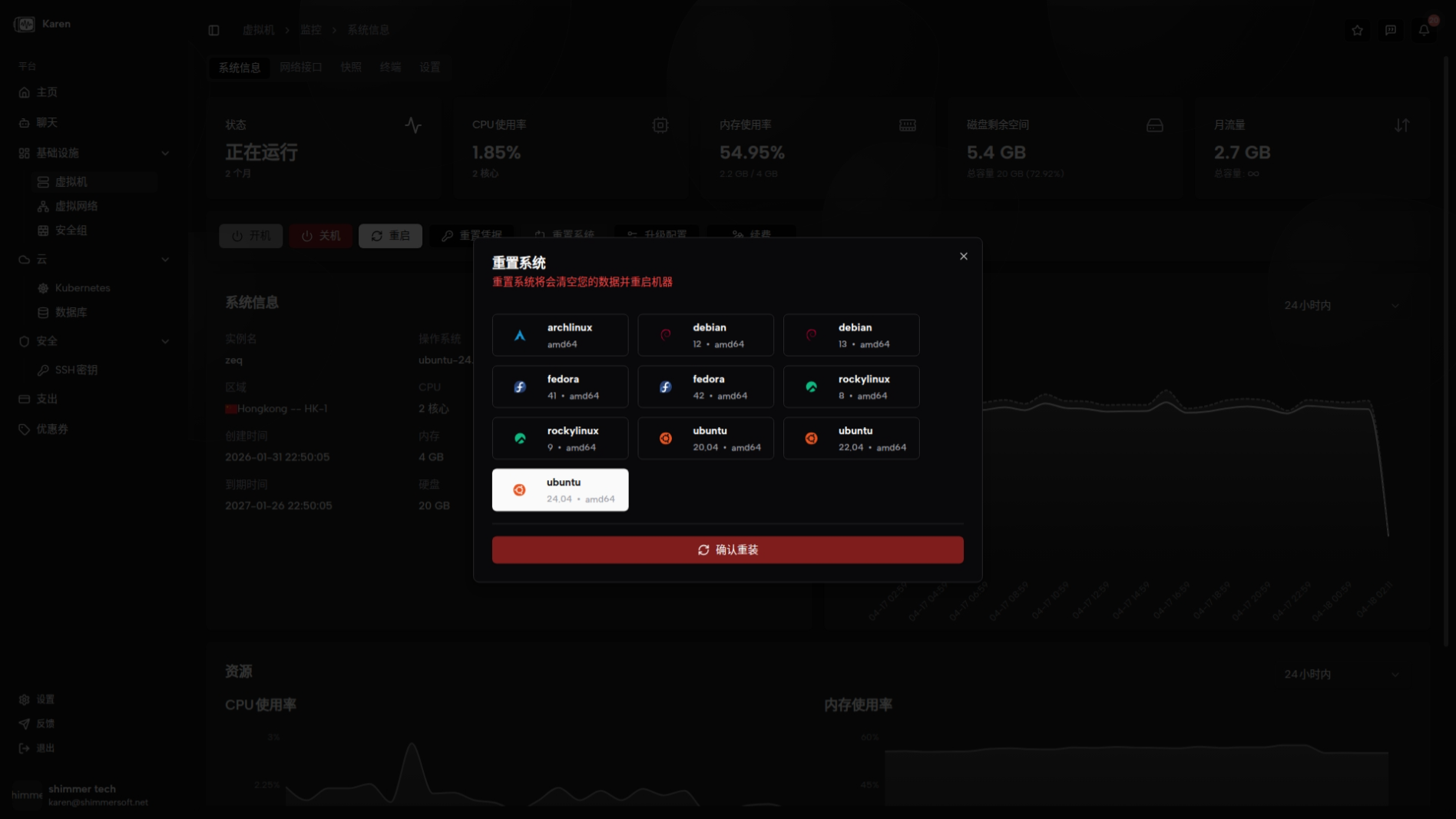

OS reinstall

Upgrade VM

Two upgrade paths exist: Plan upgrade and Custom upgrade. Plan upgrade lets you pick a predefined plan and the system calculates price and discounts. Custom upgrade lets you tailor CPU, memory, storage, and network with live price estimates; upgrading may require a reboot.

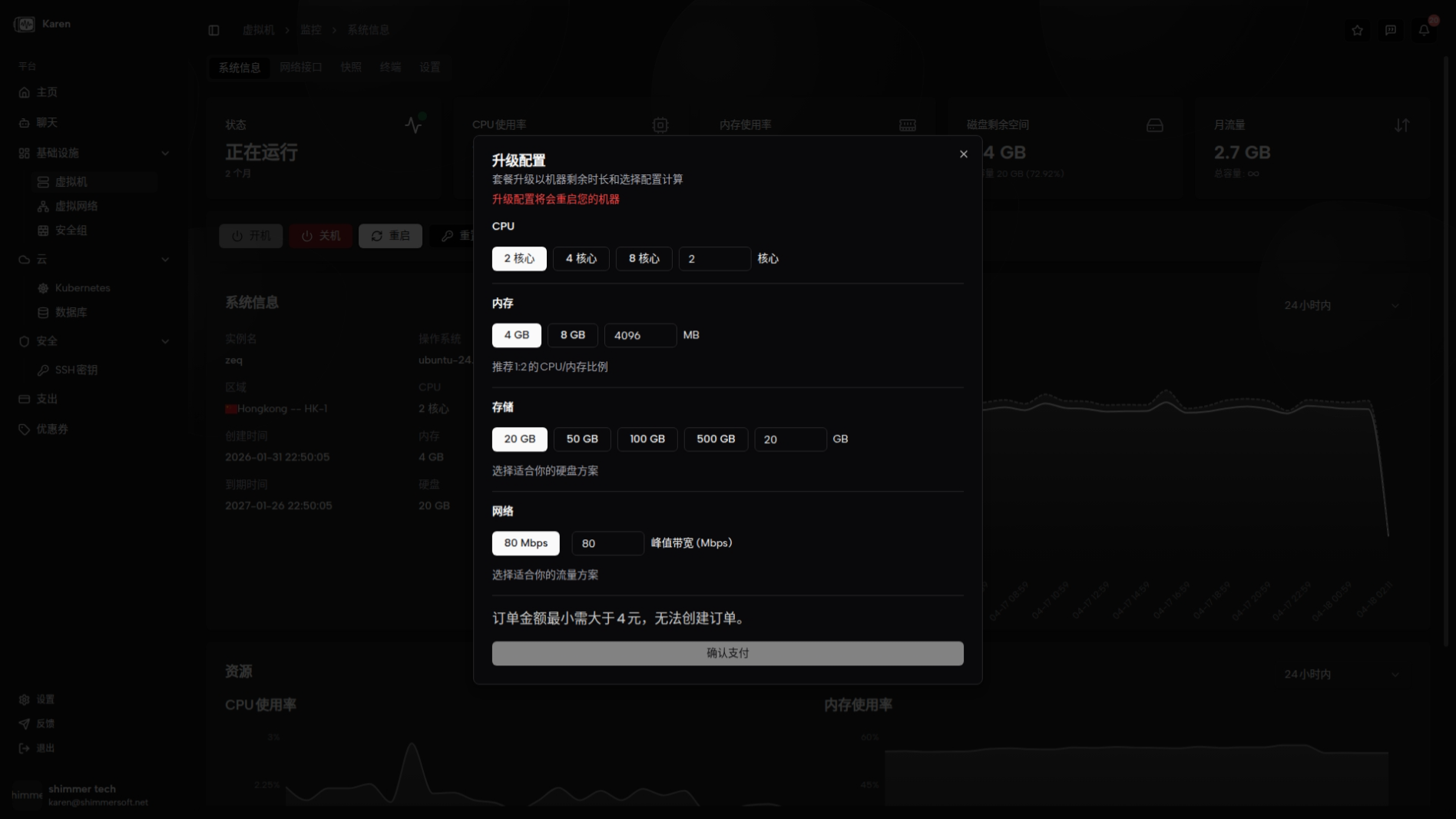

Upgrade dialog and pricing

Renew service

Extend the VM's service duration from the details page. The system creates an order for the chosen duration and processes payment.

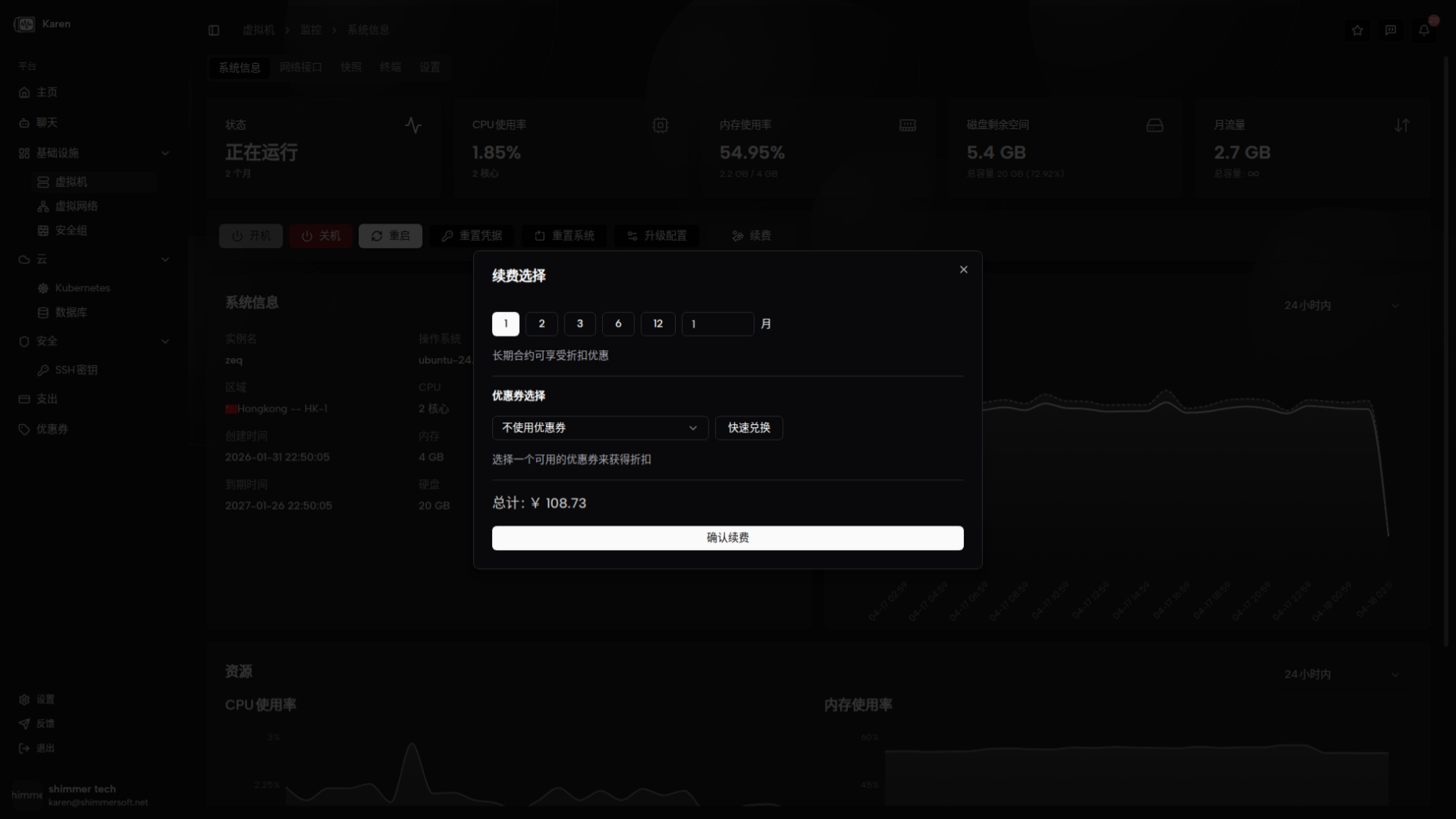

Renew flow

Note: Some actions may require VM reboot for changes to take effect. Plan accordingly for maintenance windows.

  1. Check traffic and resource charts first to determine whether the issue is CPU, memory, disk, or network related.
  2. Only reboot when workload can tolerate interruption.
  3. Use credential reset when access is lost β€” not as everyday management.
  4. Reinstall OS only if you accept data replacement or backups exist elsewhere.
